Eswoop

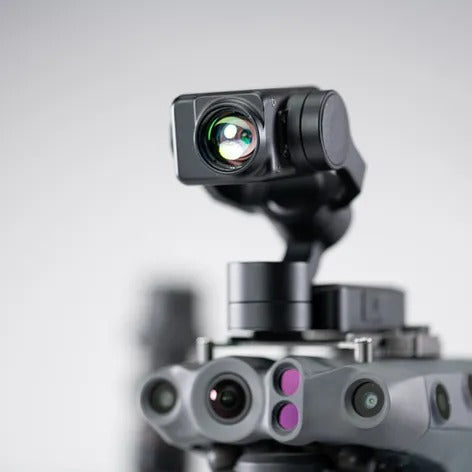

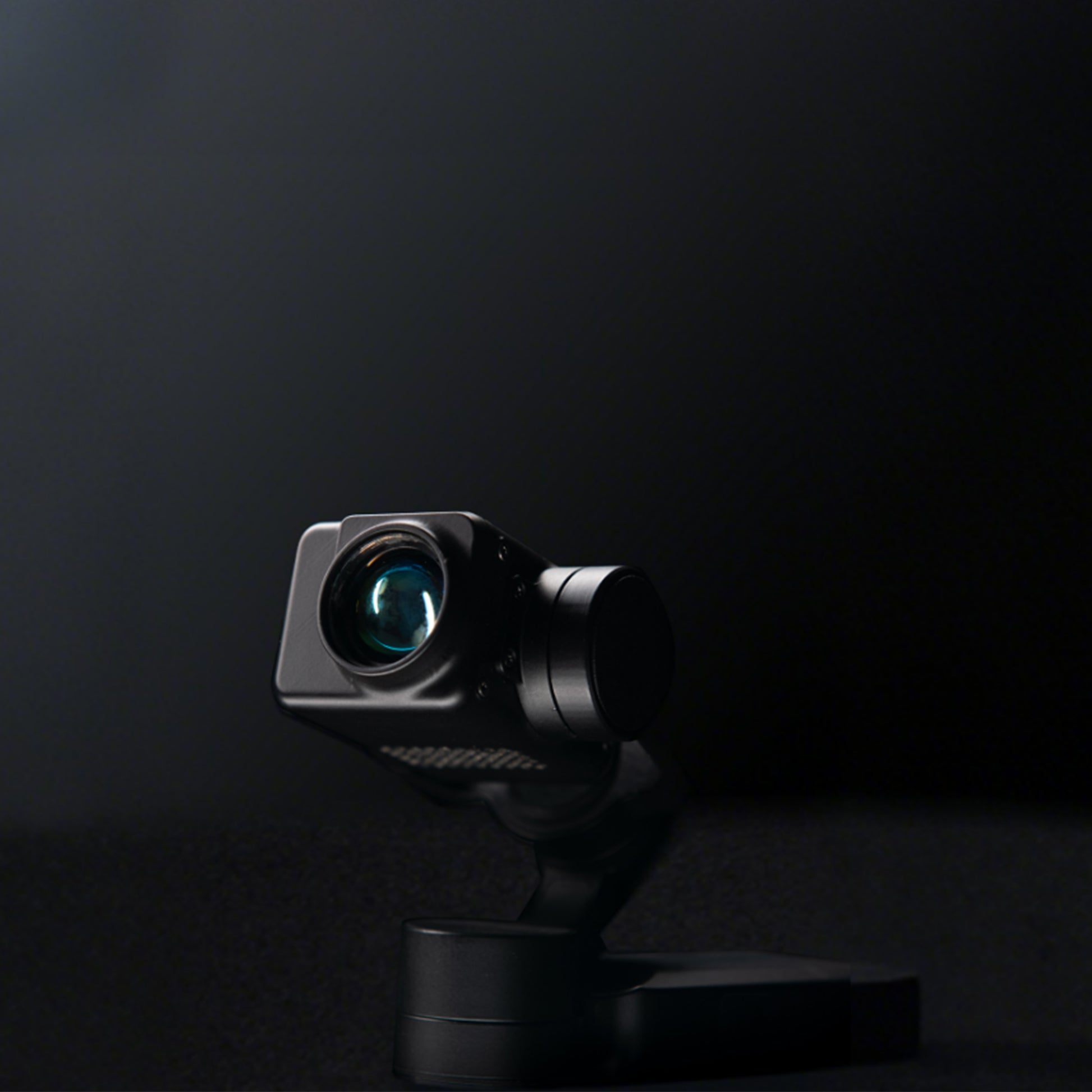

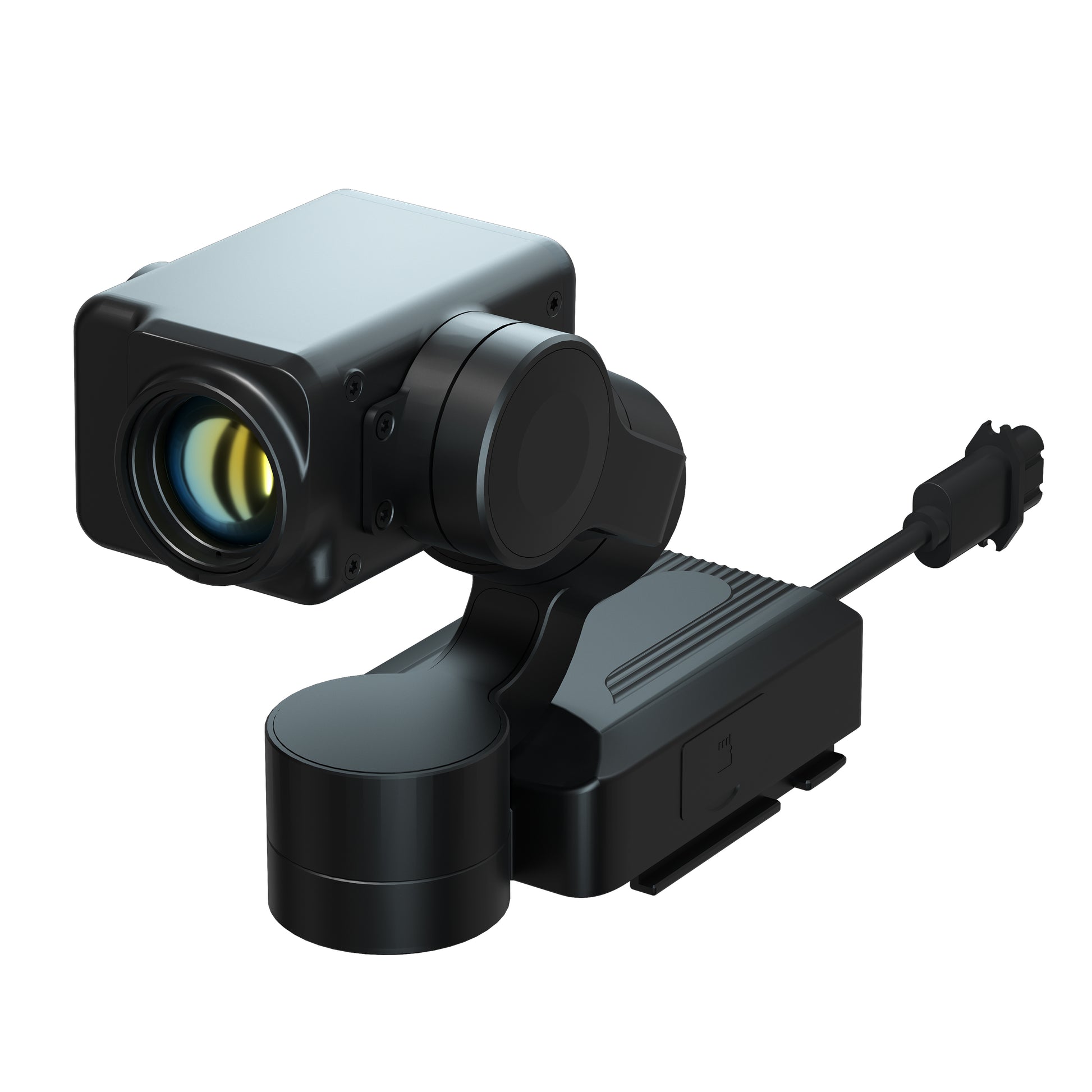

IR3 Infrared Zoom Spotlight For DJl M30 Series
IR3 Infrared Zoom Spotlight For DJl M30 Series
Couldn't load pickup availability
The IR3 Infrared Zoom Spotlight is equipped with a high-performance laser, with a maximum light output power of up to 4W. The lightangle can be smoothly adjusted between 2.0° to 70°, enabling easy switching between spotlight and floodlight. The maximum infrared fill light distance exceeds 300 meters, offering improved observation in dark environments.

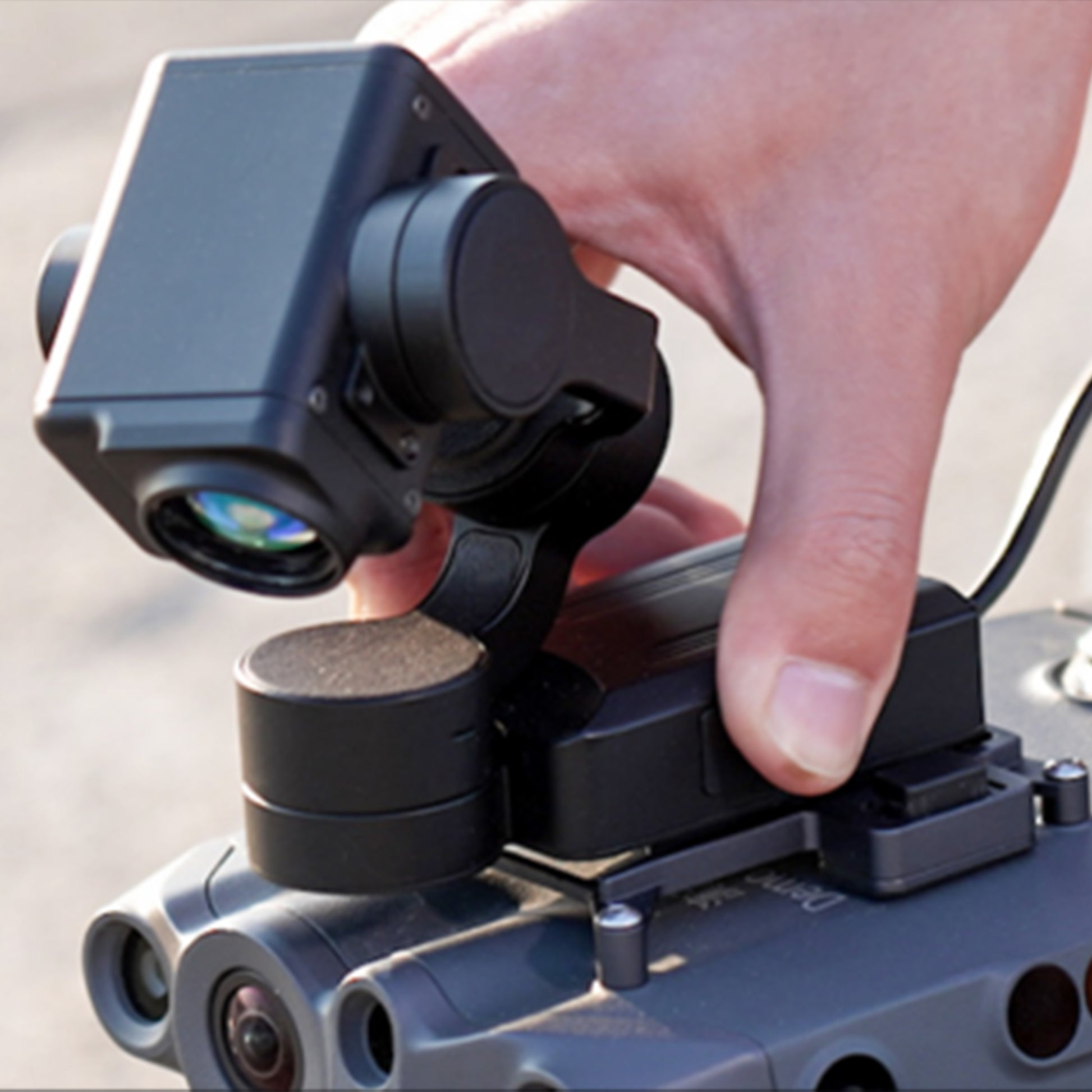

The IR3 is controlled via the DJI Pilot 2 to turn the light on/off, adjust brightness, and modify the light angle. It can also automaticallyfollow the rotation of the gimbal camera. Equipped with an E-port quick-release connector, it is compatible with DJI’s Matrice 30 seriesdrones. This provides users in fields such as reconnaissance, search and rescue, and inspection with superior night vision beyond human sight.
Collapsible content
Parameter
Weight: 208g ± 5g (without bracket)
Specifications: 126.5 × 60 × 88.5 mm
Supported Models: DJI Matrice M30 series
Effective Range: ≥300 meters
Laser Type: Surface-emitting laser
Emission Wavelength: 850 ± 10 nm
Zoom Time: ≤2 seconds (far angle - near angle)
Output Power: 4 ± 0.5 W
Illumination Angle: Electrically synchronized zoom, continuously adjustable from 2.0° to 70°
- Far angle 2.0°: Effective range ≥800 meters, spot diameter 28 meters
- Near angle 70°: Effective range ≥80 meters, spot diameter 112 meters
Laser Safety Class: Class 3B (FDA, IEC)
Laser Safety Distance: 15m at minimum angle
Storage Card Type: Supports up to 16GB capacity
Storage File System: exFAT
Function
1. Automatically follows the gimbal camera's movement to adjust the viewing angle.
2. Provides covert illumination, suitable for reconnaissance.
Compatible Models
DJI M30
