    Eswoop

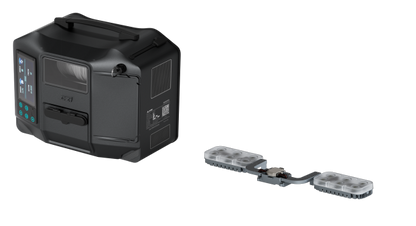

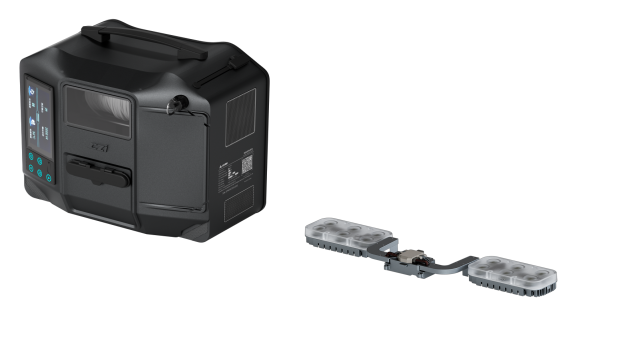

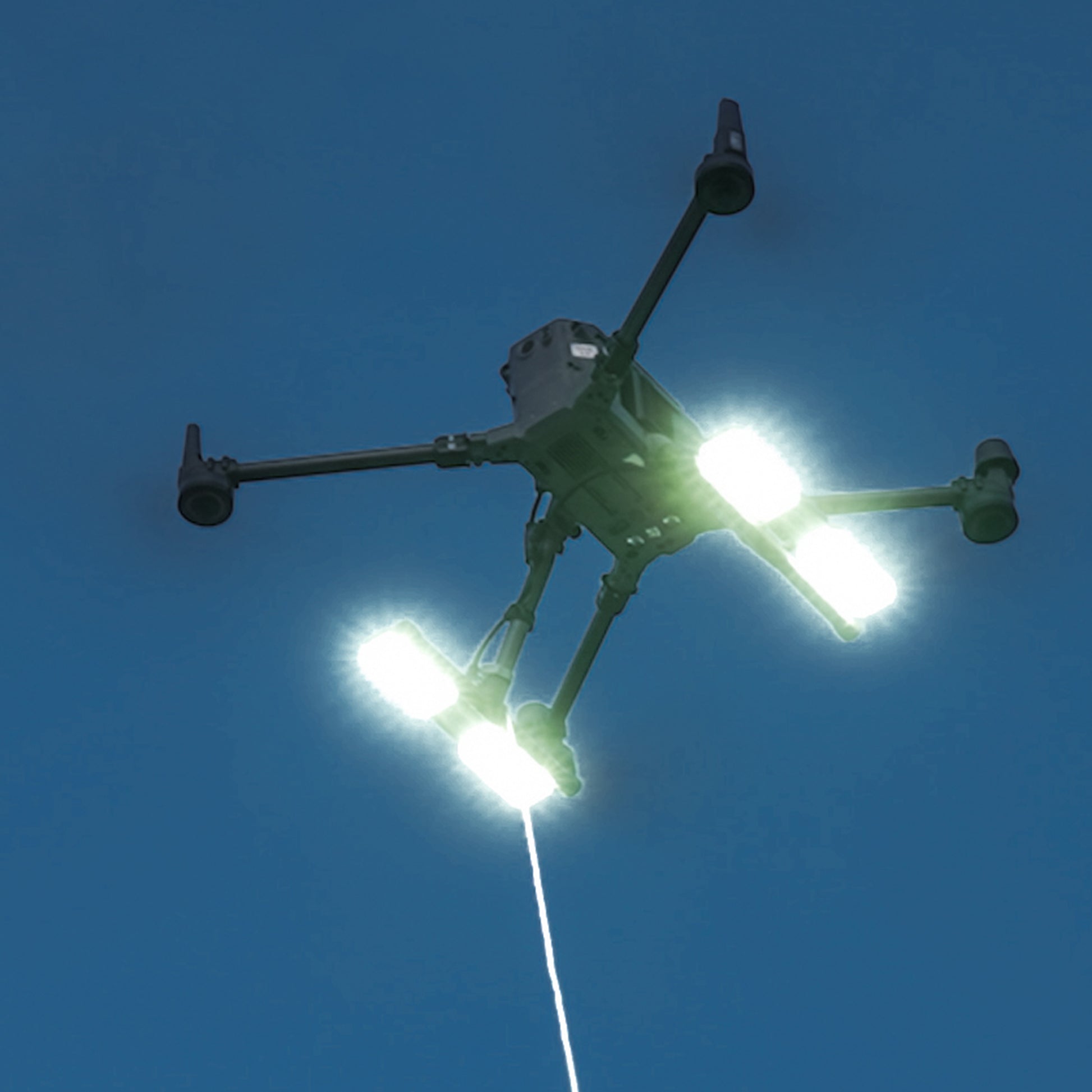

    Tethered Lighting system For DJI Matrice M300/350

    Tethered Lighting system For DJI Matrice M300/350

    $11,999.99 USD
    $13,399.00 USD $11,999.99 USD
    Sale Sold out
    Shipping calculated at checkout.
    型号

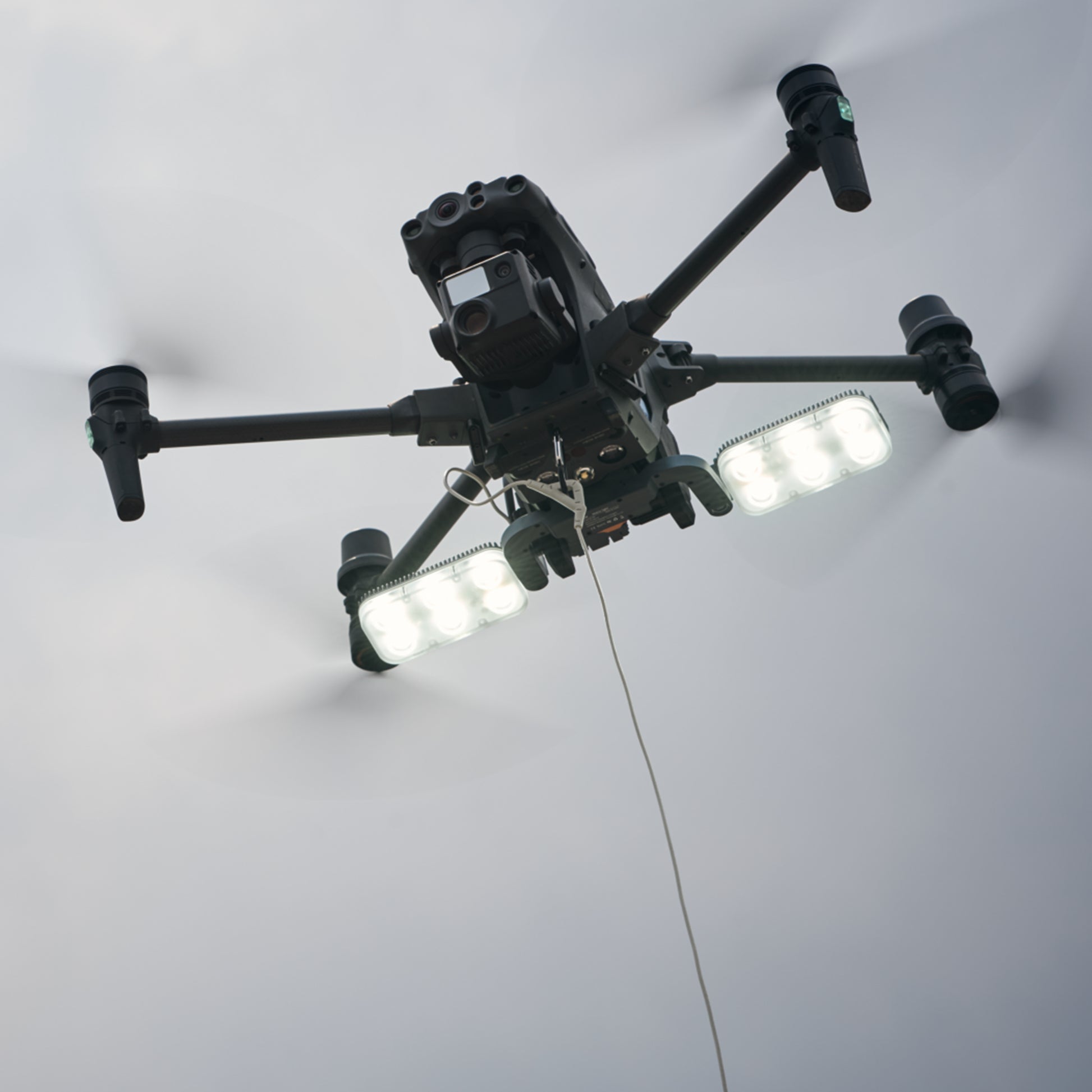

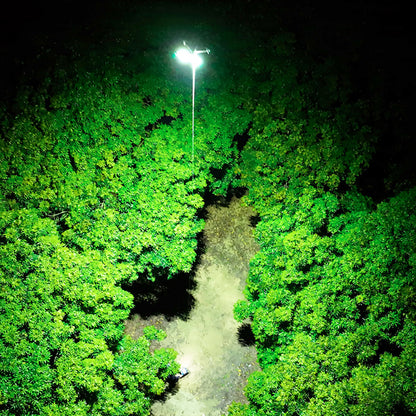

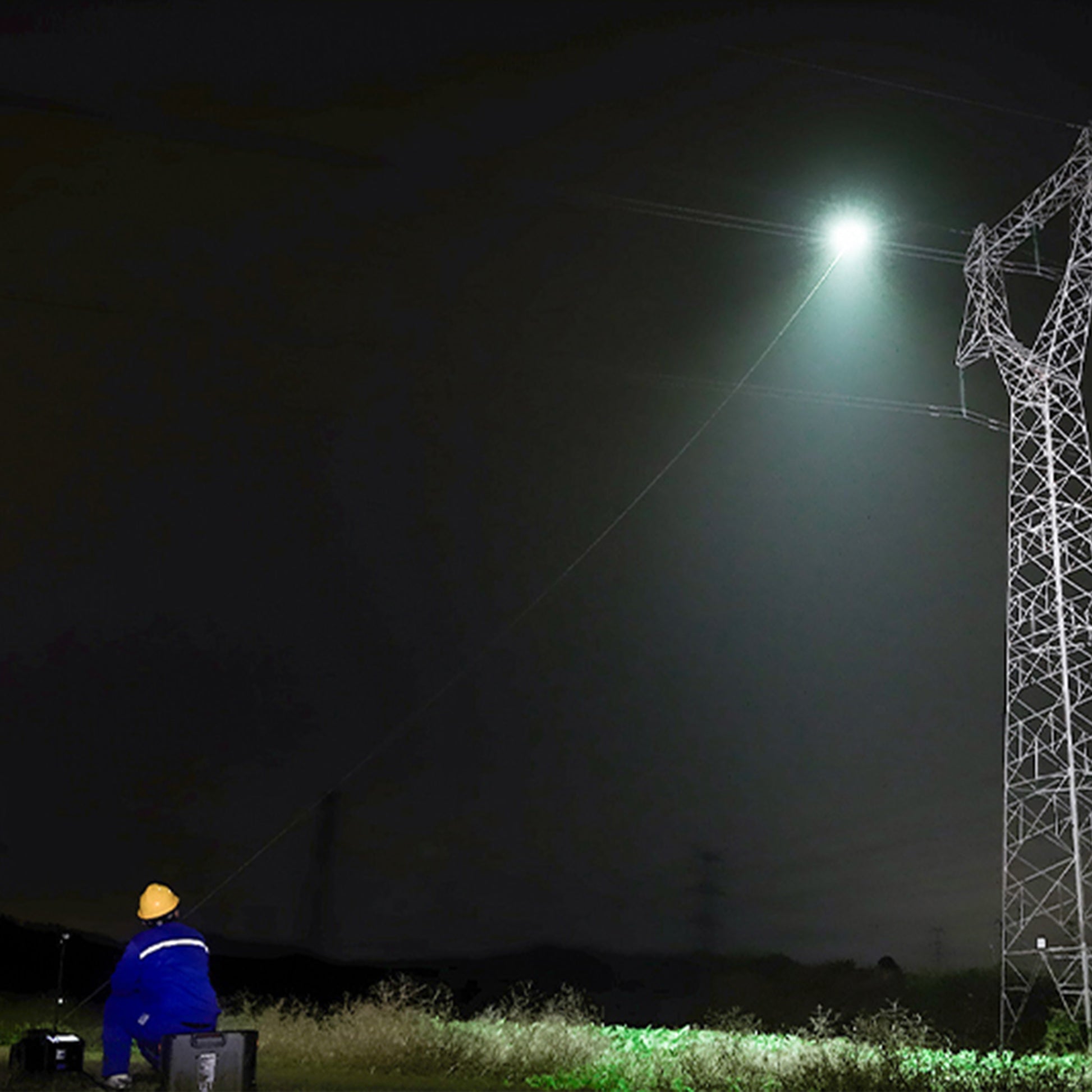

    industrial drone payloads,Convert 220V AC to 400V DC, transmit it to the drone through the power supply cable to support its 24-hour flight,When used in combination with a floodlight, it is effectively applicable to a variety of emergency repair and rescue lighting applications, meeting the needs for long-duration nighttime operations.
    View full details

    Parameter

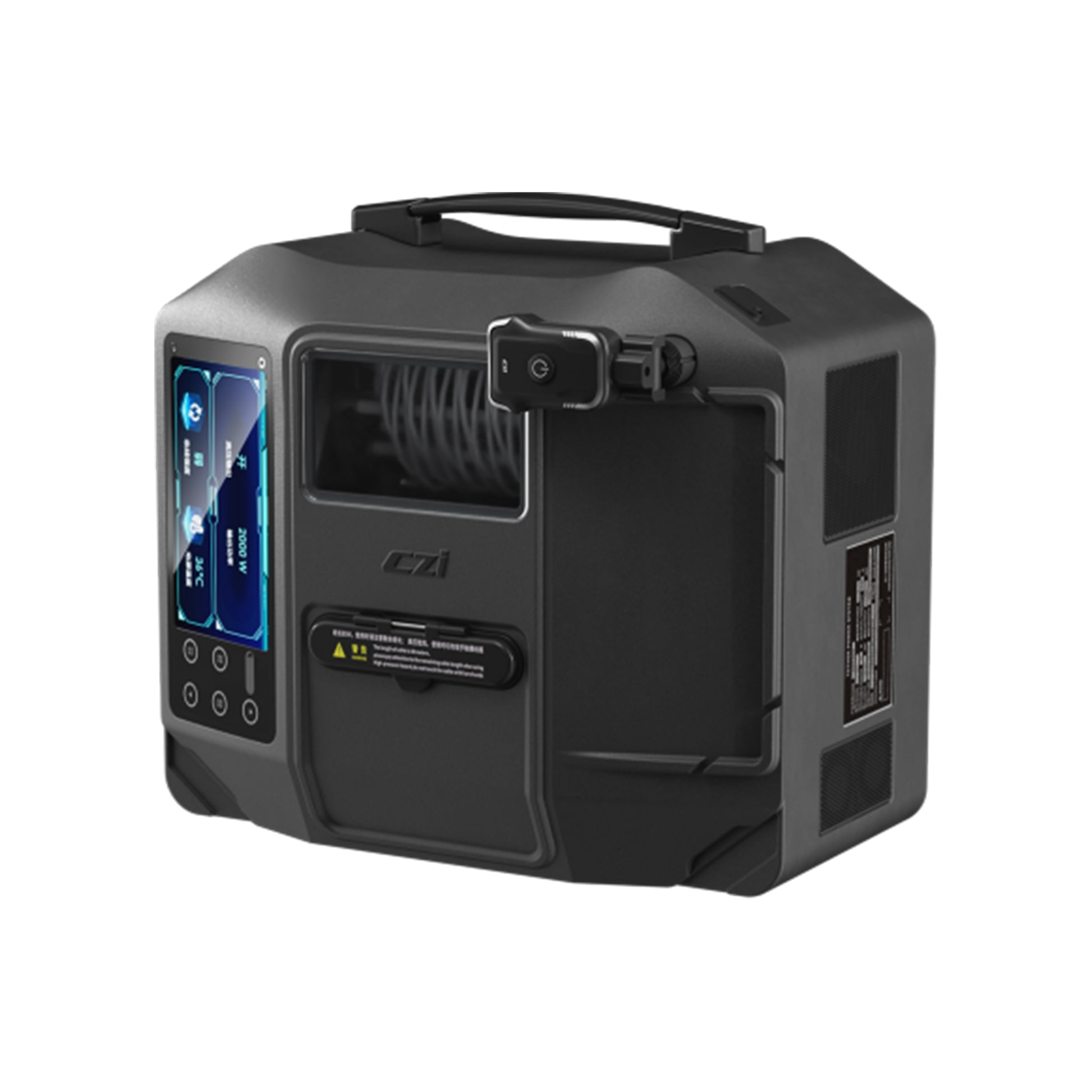

    Tethered Box Specifications：356×310×229 mm
    Weight: 7.5 kg ±5%
    Power:≥3000W (176Vac-264Vac input) / ≥1500W (90Vac-175Vac input)
    Cable: 80 meters
    Diameter:<2.8 mm
    Over-current capability: >10A
    Weight:(12g±1)g per meter
    Tensile strength: >200N
    Input Voltage: 90-264 Vac
    Operating Frequency: 50/60 Hz
    Output Voltage: ≥400 VDC
    Operating Temperature: -20-40°C

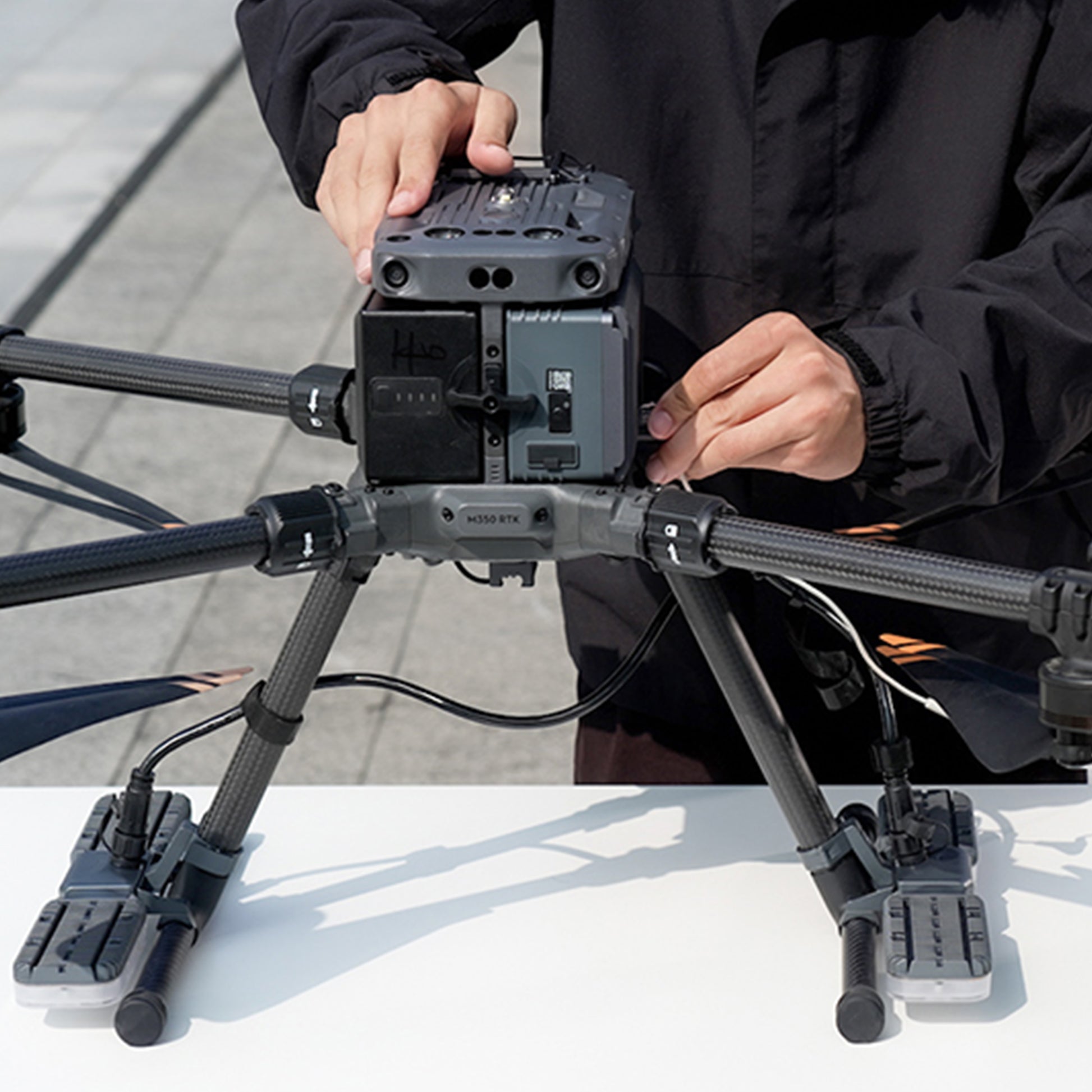

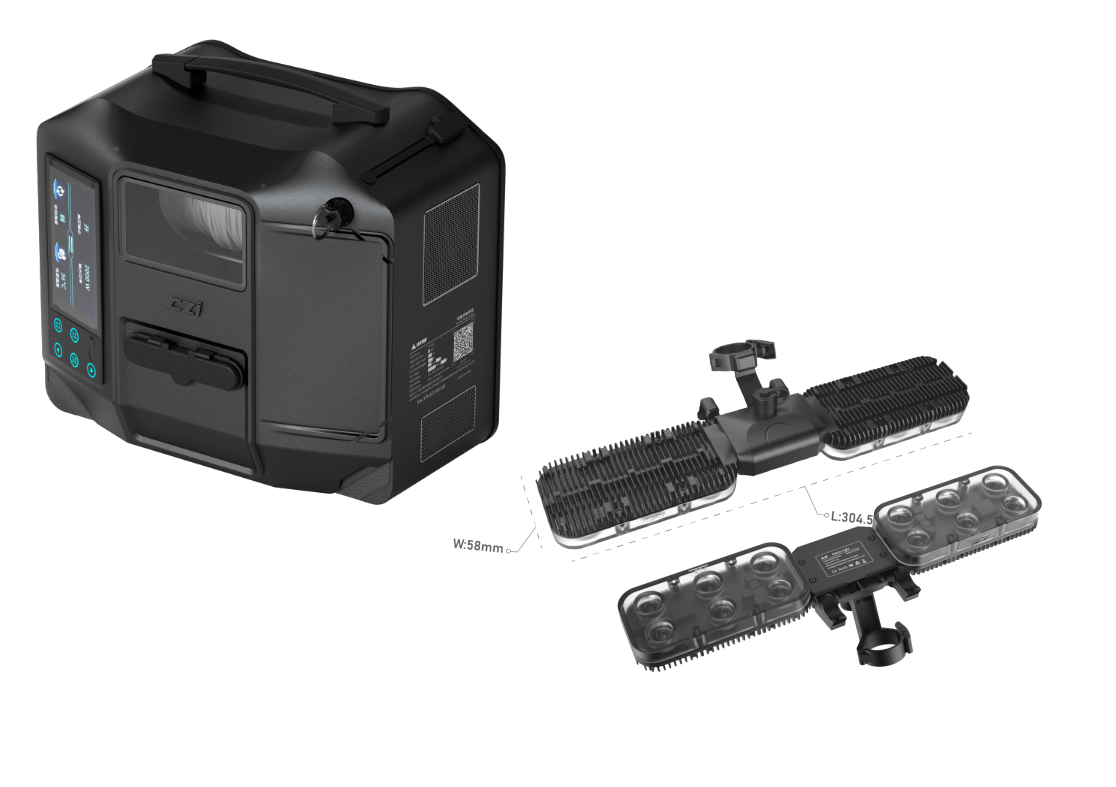

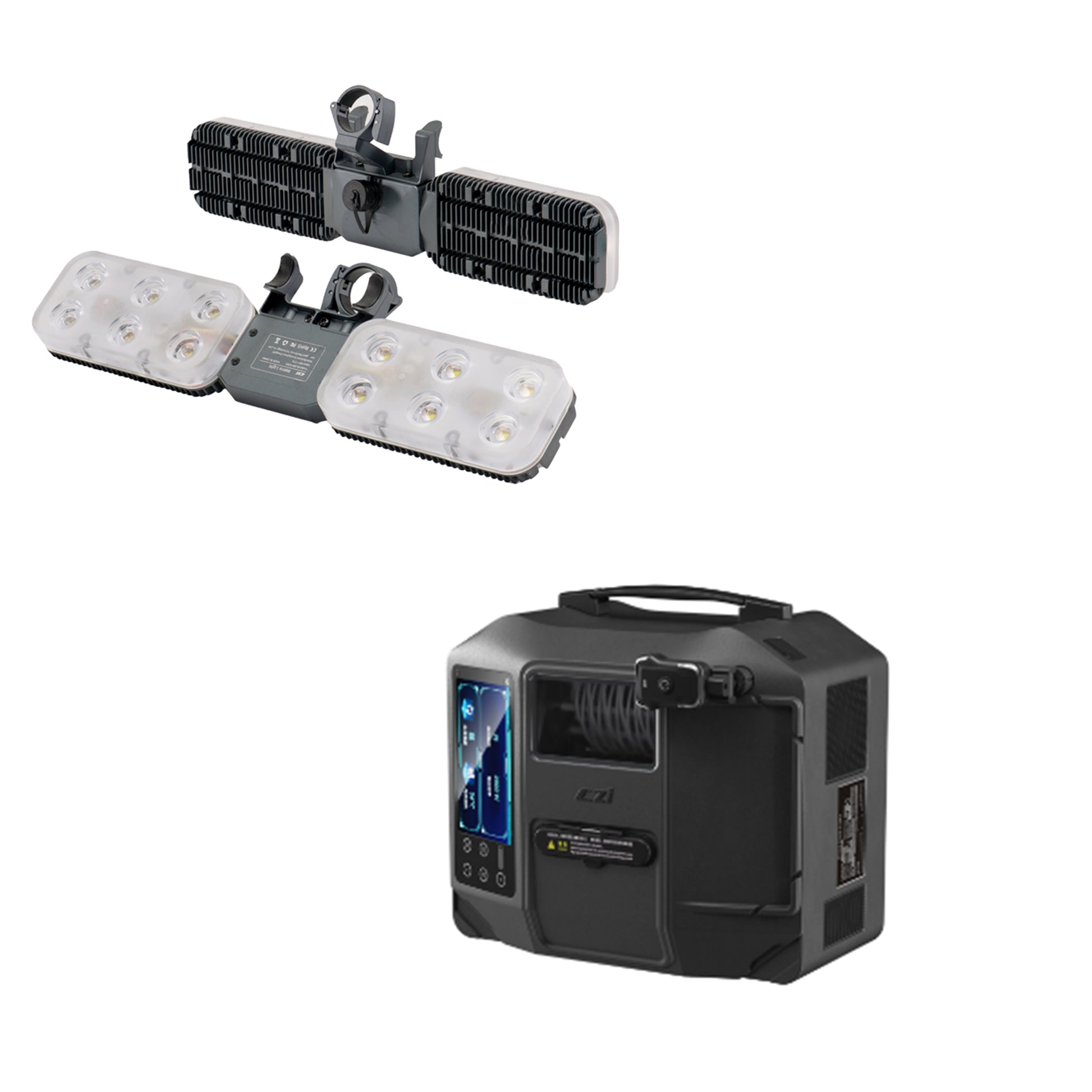

    M350 Sky End Specifications

    Dimensions: 166×91×69 mm
    Weight: 566g ±5%
    Power: ≥3000W
    Input Voltage: 400V
    Output Voltage: >45V
    Output Current: ≥60A

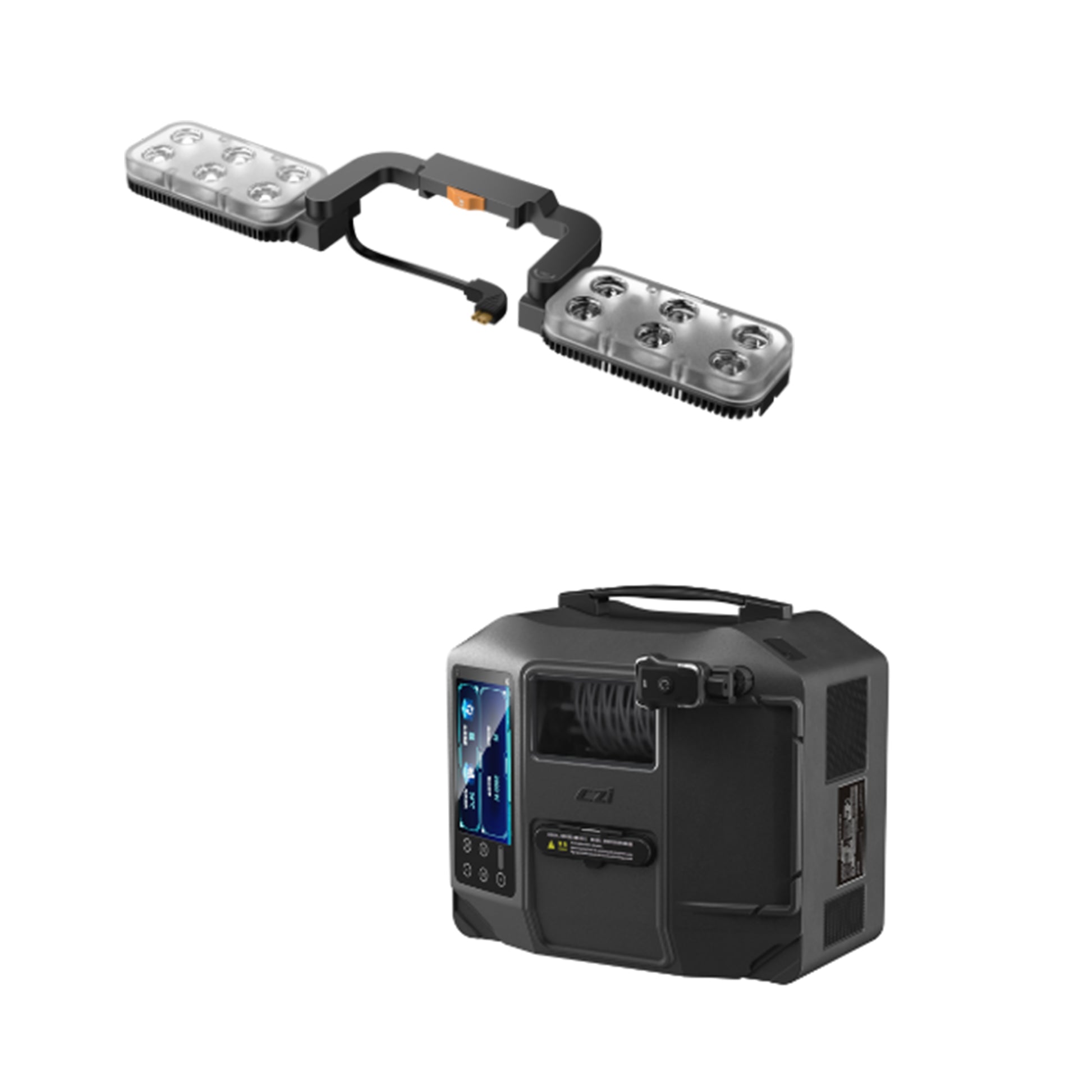

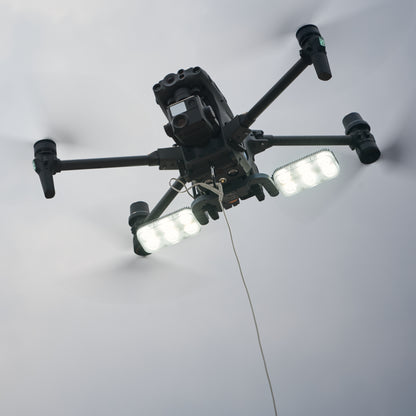

    M30 Sky End Specifications
    Dimensions: 150×59×81 mm
    Weight: 320g ±5%
    Power: ≥1500W
    Input Voltage: 400V
    Output Current: ≥60A


    Function

    1. High-performance nickel alloy power supply cable
    2. Compatible with M30/300/350
    3. Operating time greater than 24 hours

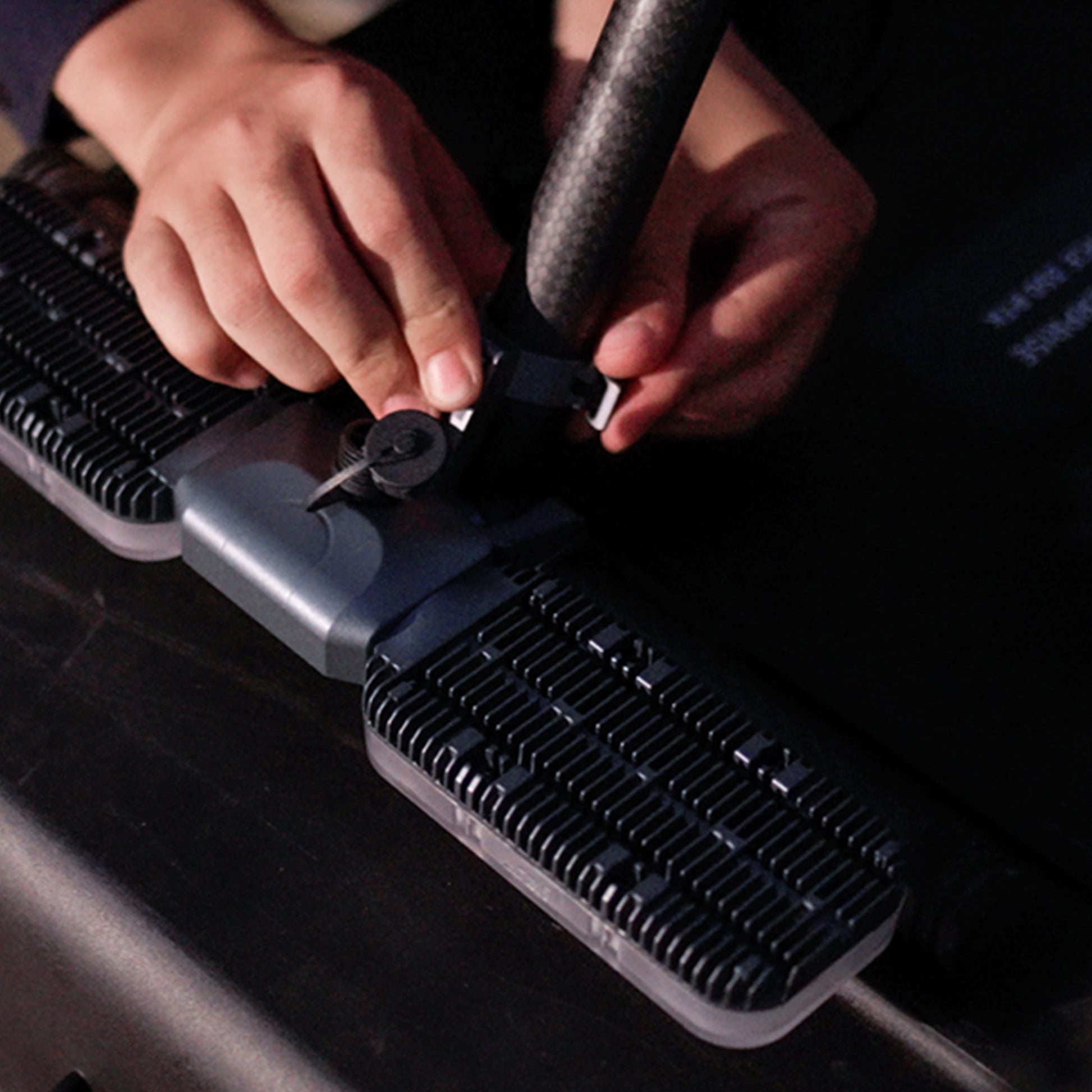

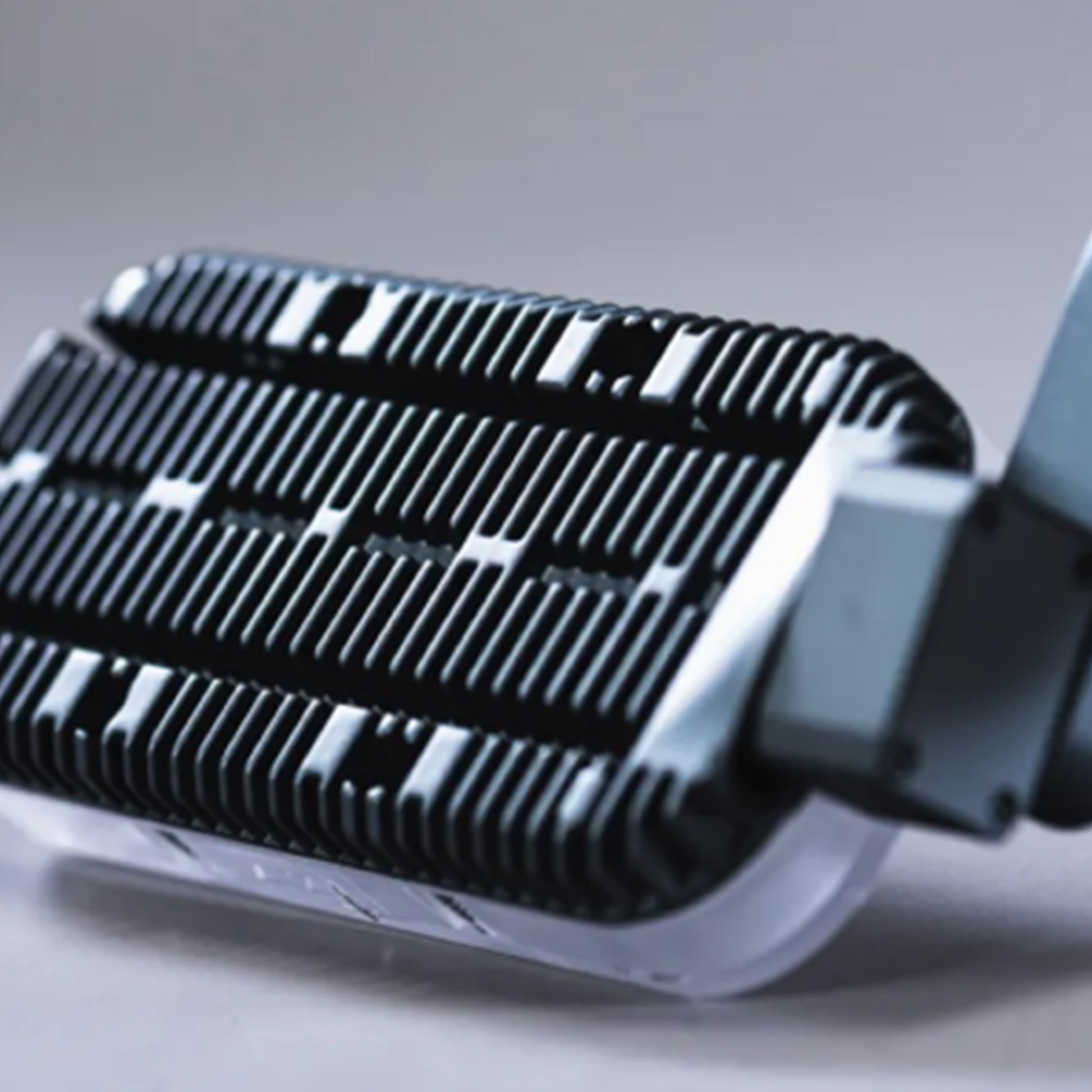

    4. Equipped with ground working area lighting

    Compatible Models

    DJI M350/300/30
